THE 16 M TELESCOPIC SELF-PROPELLED VEHICLE WITH LITHIUM BATTERY
Conceived and designed for use both indoors and in open spaces where low sound and exhaust emissions are required, the JIBBI 1670 LTH is a 16 m Self-propelled Crawler Boom equipped with a 300Ah-48V lithium battery.
Thanks to the consolidated dynamic and proactive levelling system that characterises the Almac aerial platforms, with the JIBBI 1670 LTH crawler lift the operator can work safely and confidently on uneven ground and in areas with steep slopes up to 22° (40%) during movement operations in transportation conditions.
Features and benefits of the new Almac crawler self-propelled vehicle

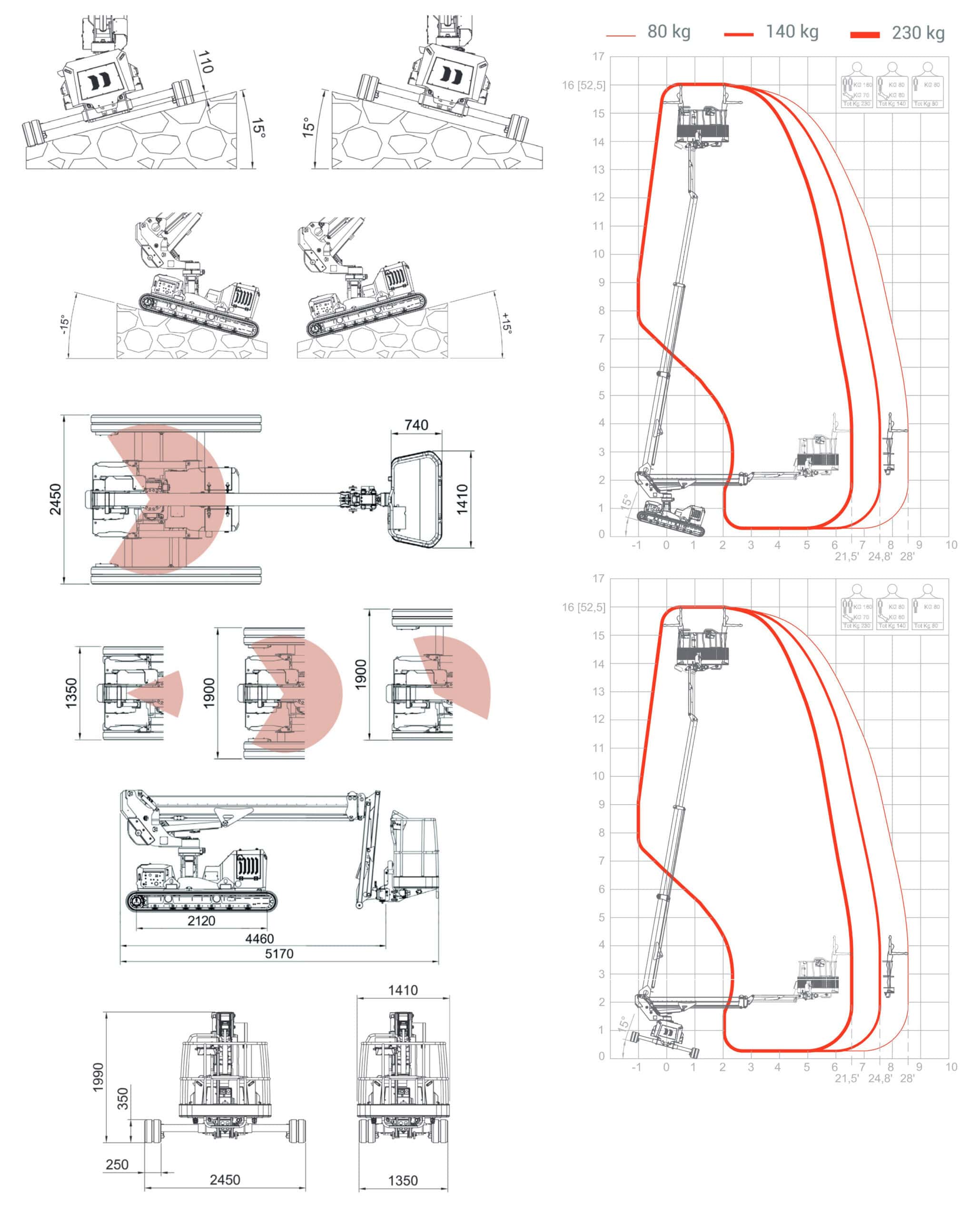

As for the version of the 1670 EVO telescopic crawler aerial platform, the LTH self-propelled vehicle differs from the other models of the JT series with:
a maximum working height of 16 m
an operating reach of 8.5 m
the possibility for the operator to travel up to a moving height of 9.8 m
for a variable undercarriage that has different track opening configurations to enable work in confined spaces (operating track widths: 1.35 m, 1.90 m, 2,20 m and 2.45 m)
The standard version of the 1.4 m wide basket (designed to remain in shape in the passage width of the machine) offers an alternative that promotes operator comfort, that is, a 1.8 m wide basket. Both versions of baskets of the JIBBI 1670 LTH aerial platform are able to rotate +/- 70° guaranteeing a maximum capacity of 230 kg.
The Almac new telescopic self-propelled vehicle is not only equipped with a 300Ah-48V lithium battery but also with 2 20Ah-48V battery chargers, which allow rapid charging in just 6 hours. Due to its characteristics, this machine is particularly suitable for operating indoors, outdoors and in sensitive areas, such as: hospitals, shopping centres, industries, residential areas, urban construction sites, historic centres and churches.
Almac technologies to guarantee safety at height
The JIBBI 1670 LTH, like all the other models in the range, features a series of technologies aimed at increasing operator safety at height:
DWP -Dynamic Working Performance, for dynamic management of the machine’s performance based on three different work parameters, i.e. the slope of the ground, the width of the retractable crawler undercarriage and the load of the basket, resulting in correct position of the machine at all times
Safe-Lock System, which prevents the crawler from escaping from the tensioning wheels (subjected to patent request)
Ultrasonic anti-collision system, which protects operators against sudden and accidental impact in the basket with an anti-crush barrier function on the two sides of the basket (in the top and bottom part)
Optional equipment for the crawler self-propelled vehicle JIBBI 1670 LTH
The optional different customisations offered by Almac with respect to the standard set-up include:
Large basket (8 x 0.7 m)
Non-marking tracks
Electric pump 220V-2.2Kw / 50Hz (Weight +30 Kg)
Radio remote control with rechargeable battery
Lubricant kit for Arctic climate
200 kg winch kit
