Almac BIBI 1090-BL Bi-Energy

Almac BIBI 1090-BL Bi-Energy

Hybridi

Tela-alustainen saksinostin

Ulottuvuudet/
Lavakoko: 1.80 x 1.30 m
Nostokyky: 300 kg
Työskentelykorkeus: 10 m

Lataa esite

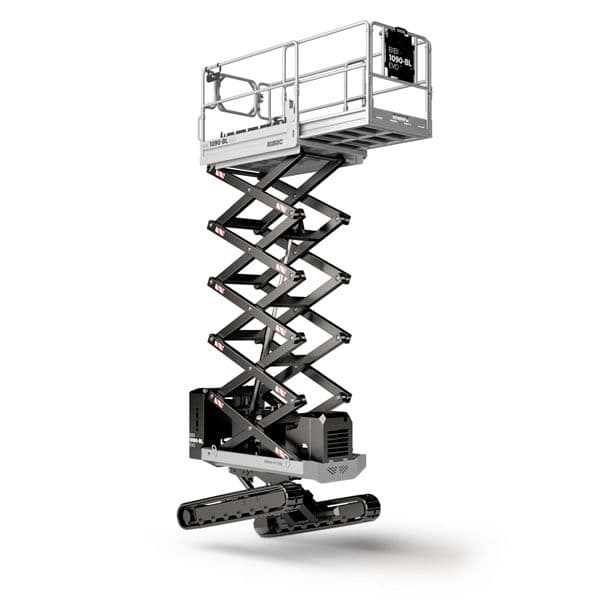

THE BI-LEVELING DUAL-SCISSOR MINI-SCISSOR FOR OPERATIONS UP TO 10 METERS IN HEIGHT

Equipped with an innovative bi-leveling technology and designed to perform up to 10 meters in height, the Bibi 1090-BL Bi-Energy scissor lift is designed by a highly trained expert staff. Its power is entrusted to an electric engine and a Honda petrol engine.

Why should you choose it?

By choosing the model in question, you will be able to rely on a high performance scissor, able to facilitate the various work activities of your operators, who often find themselves faced with exceptional situations. Among the benefits it offers, in fact, there are the following ones:

Ability to operate in indoor environments by taking advantage of the Lithium batteries’ autonomy
Simplicity and safety of use even in conditions of steep inclines or irregular terrain

What are the available optional?

In addition to the standard technological devices installed in the machine in question, such as the console for remote control and all those concerning automatic leveling, Almac offers the possibility of choosing some optional to expand your tracked lift functions. If you are interested in expanding your machine fleet with the mini-scissor here proposed, in fact, you will have the possibility to request optional features such as a Hatz 1B40 diesel engine instead of the petrol one, or anti-marking tracks.

If, on the other hand, you are interested in changing the appearance of your machine, you can select a color of your choice.

Basket capacity 300 kg (2 op.)
Basket size 1.80 x 1.30 m
Max working height 10.0 m
Max height basket floor 8.0 m
Moving height 6.5 m
Accelerator Automatic
Undercarriage Bi-Levelling
Basket levelling Automatic
Longitudinal levelling Front +/- 15°
Longitudinal levelling Rear +/- 20°
Lateral levelling +/- 14°
Electric pump (option) 220V-2,2kW
Direction-Control System Yes
Easy-Drive System Yes
Ground emergency Yes
Control of inclination Automatic
Gradeability 25°
Side slope 21°

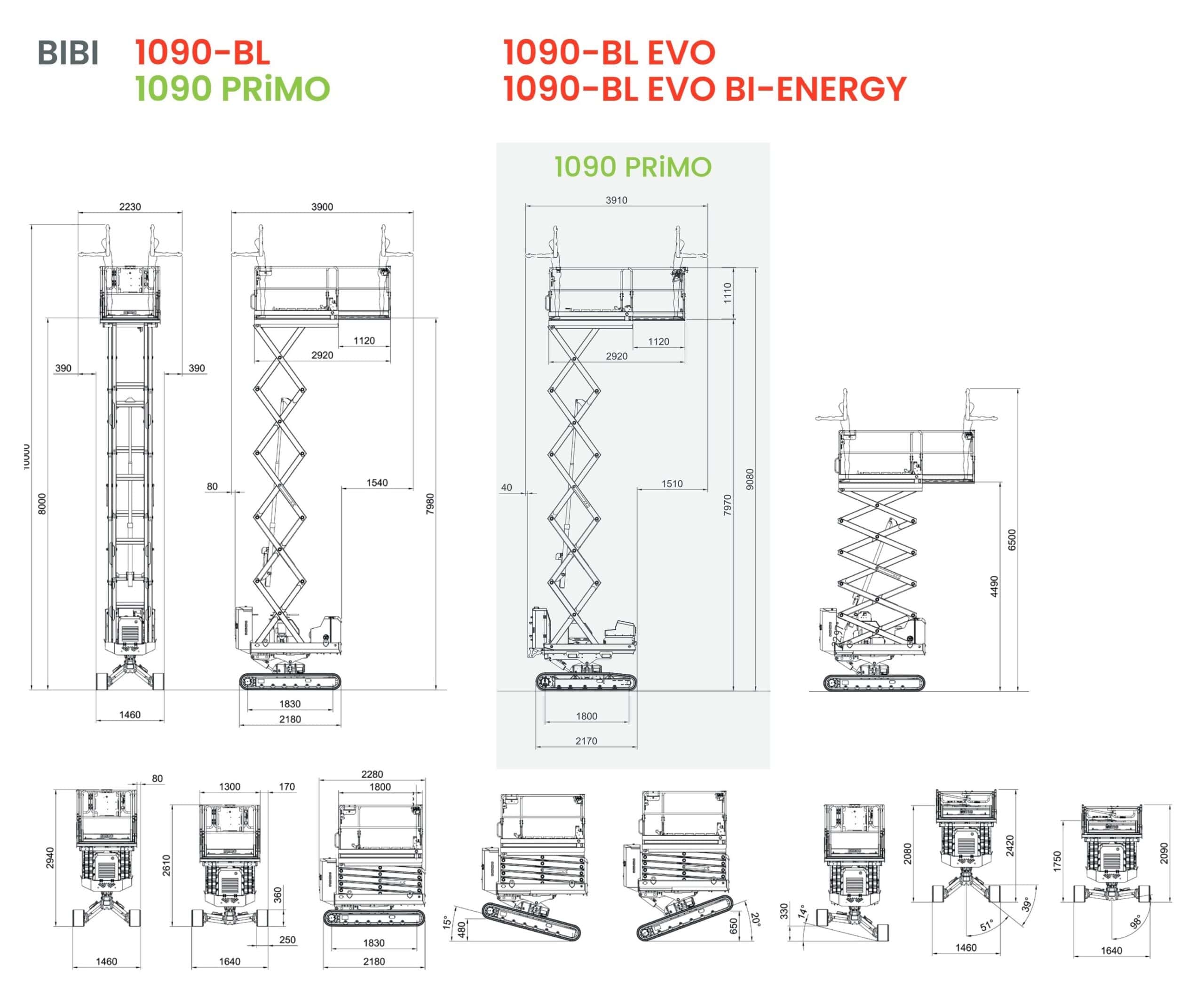

Width 1.46 ÷ 1.64 m
Min height with narrow tracks (folded railings) 2.42 (2.08) m
Min height with wide tracks (folded railings) 2.09 (1.75) m
Compliance EN 280, ANSI, CSA, AS/NZS
Power Diesel Kubota Z602 + LTH Pack 100Ah-48V
Total Weight 2960 kg
Max Speed 2.40 km/h
