Ulottuvuudet/
Lavakoko: 1.50 x 1.20 m
Nostokyky: 250 kg
Työskentelykorkeus: 7.9 m

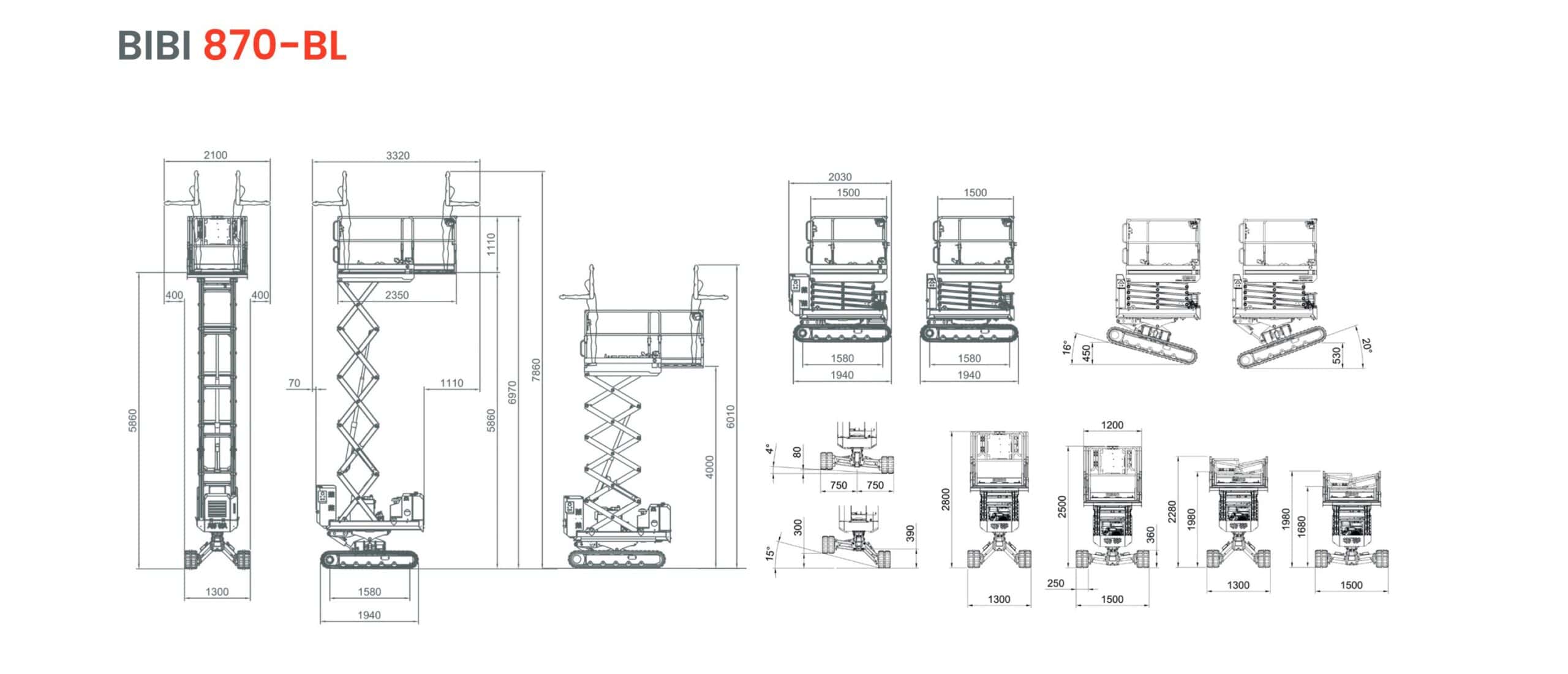

The latest addition to the Almac range of machines, the Bibi 870-BL Bi-Energy scissor lift with electro-hydraulic system and bi-leveling system is designed to work up to 7.90 meters in height. Furthermore, its use will be able to guarantee the maximum safety of its operators.
The company’s goal is to offer solutions to every customer’s need and that simplify the various work operations. Precisely for this reason, the model proposed here is a high-performance mini-scissor, which, in addition to a large capacity cabin (250 kg, or 2 people), offers numerous competitive advantages, such as the following ones:
Ability to work in steep and uneven ground (leveling up to 20 ° longitudinally and 15 ° laterally)
Extreme maneuverability even in very small spaces
Ability to operate in indoor environments by taking advantage of the Lithium batteries’ autonomy
Long duration of use by using the electric engine
Specifically, by using the electric engine, you will have an autonomy of about six hours at full capacity.
In addition to the machine standard functions, when you choose Almac as your professional partner, you can request some useful customization for your tracked lift. For the model proposed here, in fact, the following customization is available:
Addition of non-marking tracks
Color selection
| Basket capacity | 250 kg (2 op.) |
| Basket size | 1.50 x 1.20 m |
| Max working height | 7.9 m |
| Max height basket floor | 5.9 m |
| Moving height | 6.0 m |
| Accelerator | Automatic |
| Undercarriage | Bi-Levelling |
| Basket levelling | Automatic |
| Longitudinal levelling Front | +/- 16° |
| Longitudinal levelling Rear | +/- 20° |
| Lateral levelling | +/- 15° |
| Electric pump (option) | 220V-2,2kW |
| Direction-Control System | Yes |
| Easy-Drive System | Yes |
| Max speed | max 2.20 km/h |
| Ground emergency | Yes |
| Control of inclination | Automatic |
| Gradeability | 25° |
| Side slope | 21° |
| Length | 1.94 m |
| Width | 1.30 ÷ 1.50 m |
| Min height with narrow tracks | 2.28 (1.98) m |
| Min height with wide tracks | 1.98 (1.68) m |
| Compliance | EN 280, ANSI, CSA, AS/NZS |
| Powered | Gasoline Honda iGX390 |
| Powered (option) | Diesel Hatz 1B40 |
| Total weight with Gasoline Honda iGX390 | 2500 kg |
| Total weight with Diesel Hatz 1B40 | 2530 kg |
