Almac MULTI-LOADER 3.0 BL

Almac MULTI-LOADER 3.0 BL

Täyssähköinen

Telakuljetin

Nostokyky: 3000 kg
Min. Leveys: 1.46 m
Min. Korkeus: 0.74 m

Lataa esite

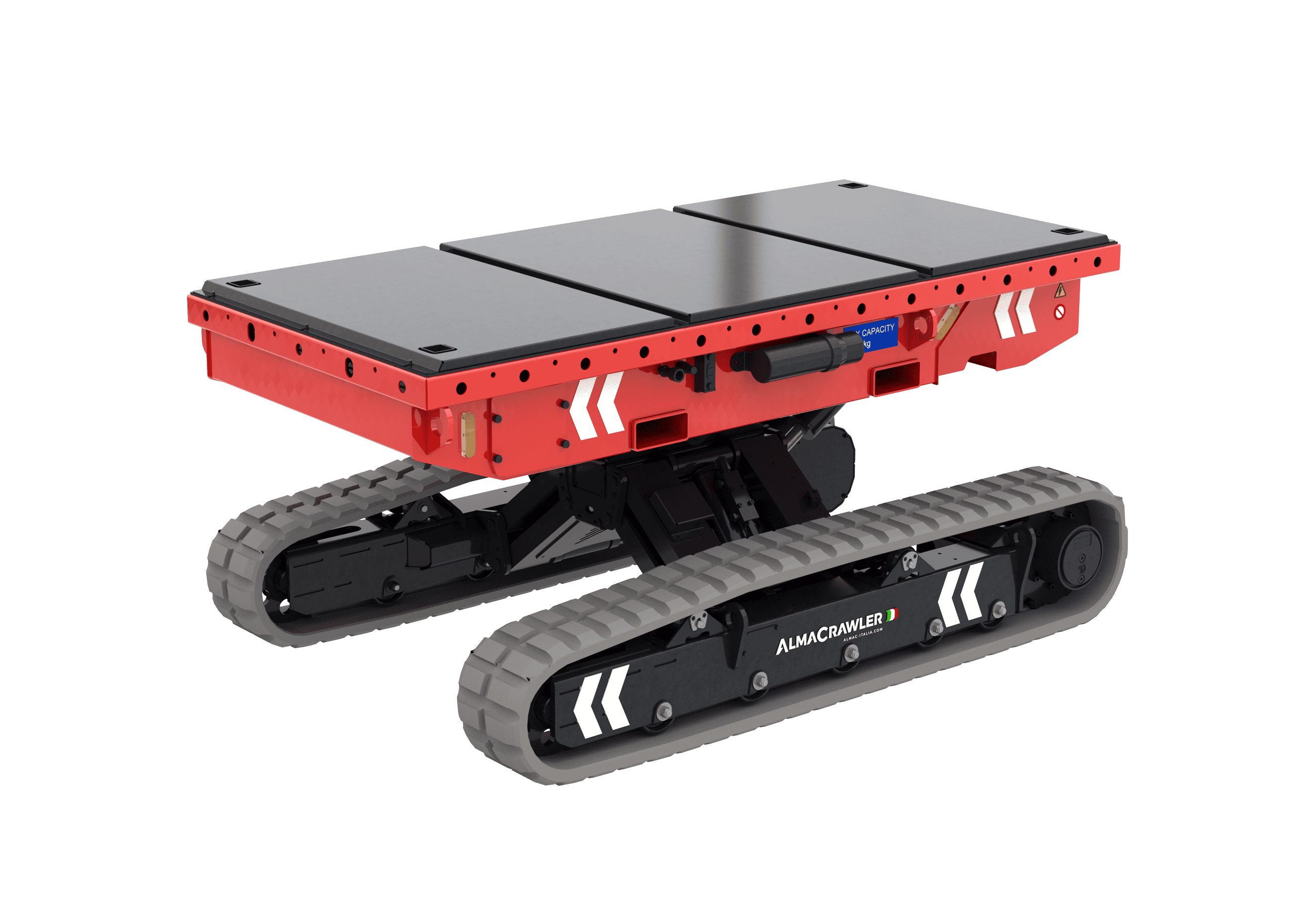

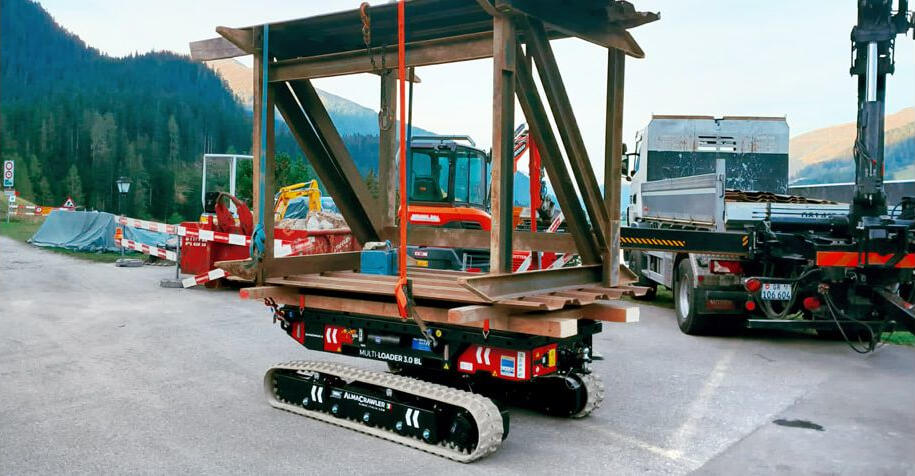

Self-levelling tracked transporter with full electric drive

Our full electric tracked carrier upgraded to max capacity of 3000kg

The new Multi-Loader 3.0 BL is an evolution of our Multi-Loader 2.5 Performance, featuring our award-winning bi-levelling system and radio remote controls as the original version, but updated with full electric drive that allows it to travel at a max 4.2km/h.

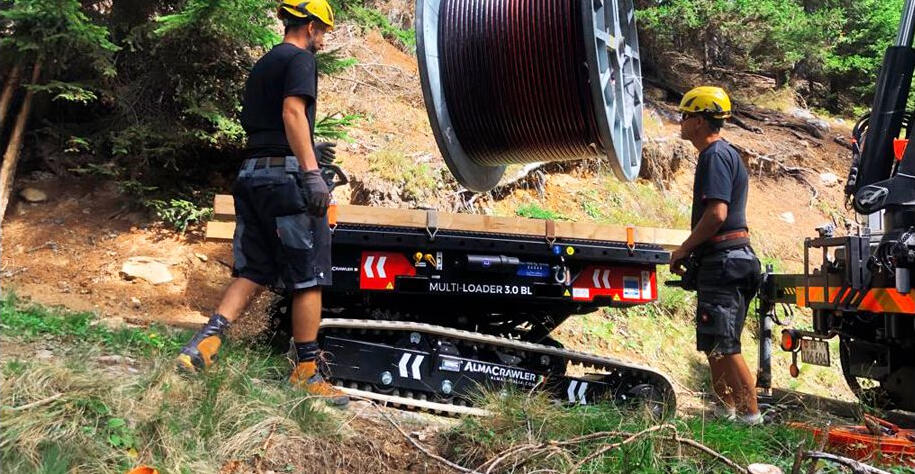

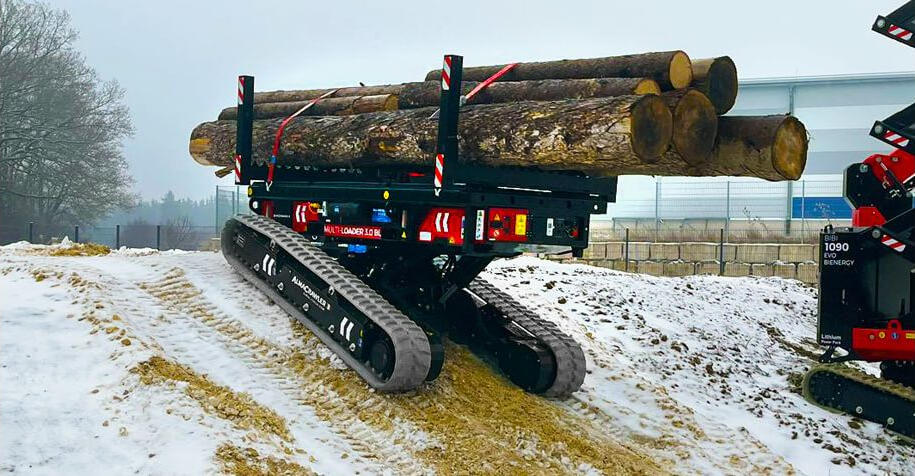

The ML 3.0 BL is designed to carry loads of up to 3000kg on slopes or uneven terrain of up to a max 20°. Speed adjustment is automatic based on load and inclination and helps the operator keep the load safe during travel.

Advantages of tracked Multi-Loader equipment

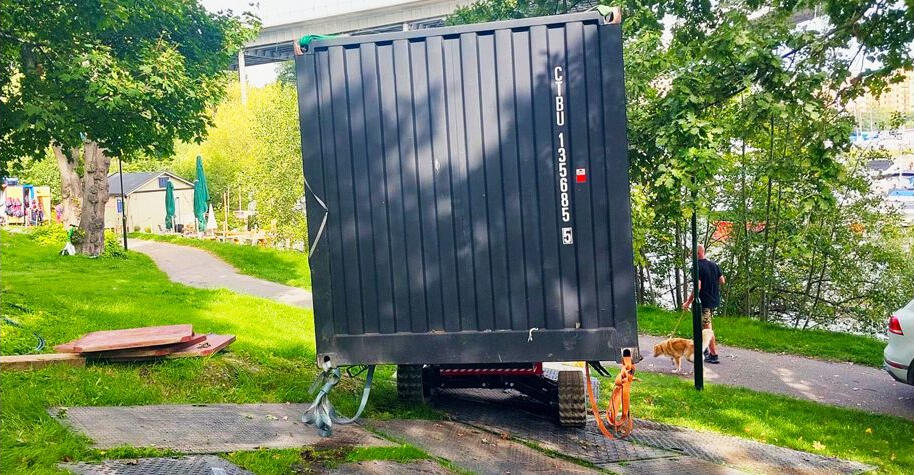

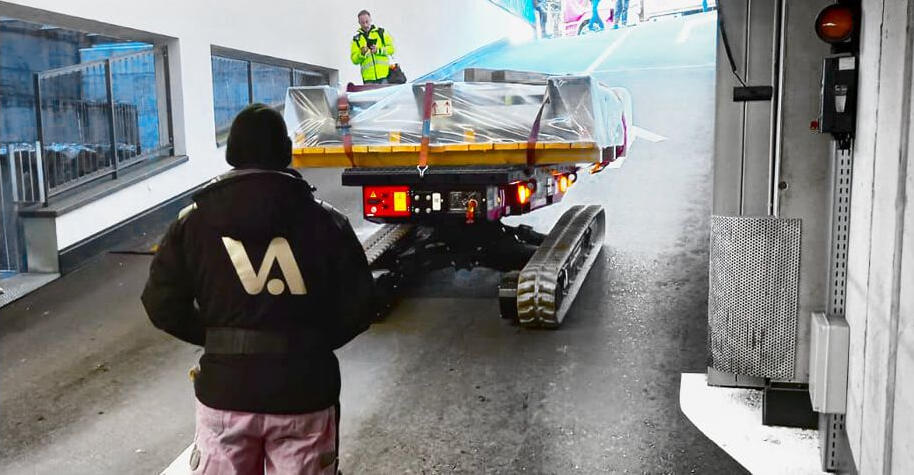

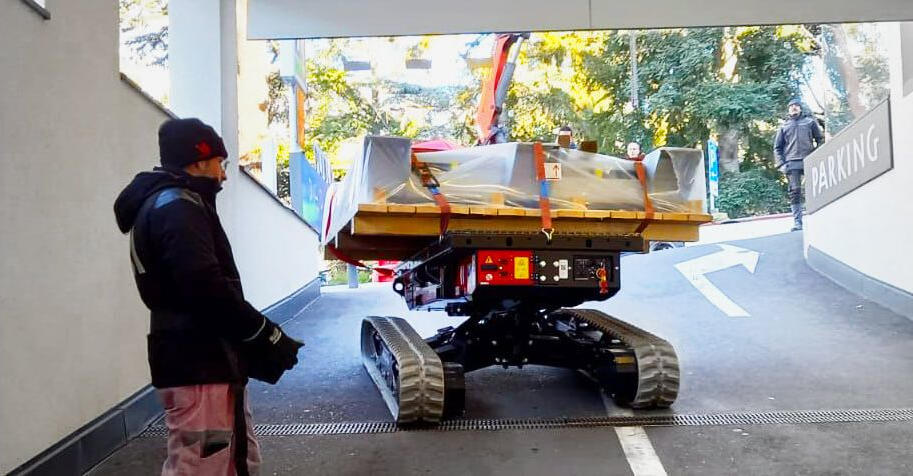

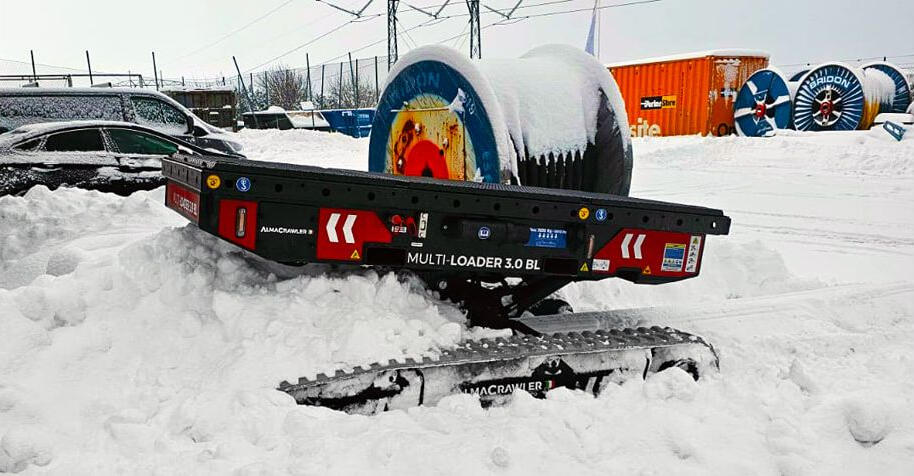

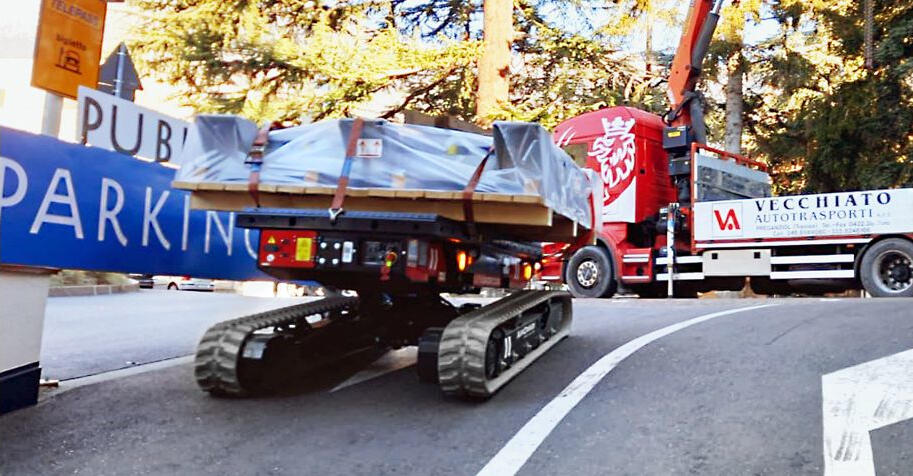

One of the biggest challenges of transporting goods and loads across uneven terrain or in urban settings is the limitations imposed by ground conditions and ground pressure. The tracks allow the Multi-Loader 3.0 BL to freely work on a range of terrains and jobsites, ensuring optimal grip while considerably lowering the ground pressure of the transporter and its load.

The self-levelling technology further ensures that pressure from the load is spread across the ground-bearing points.

ATS – Automatic Tensioning System

The ATS zero maintenance track tensioning system is directly connected to and controlled by the main hydraulic system.

MyAlmac Control Panel

Simplify and centralize the management of all after-sales activities, spare parts purchasing and warranty procedures.

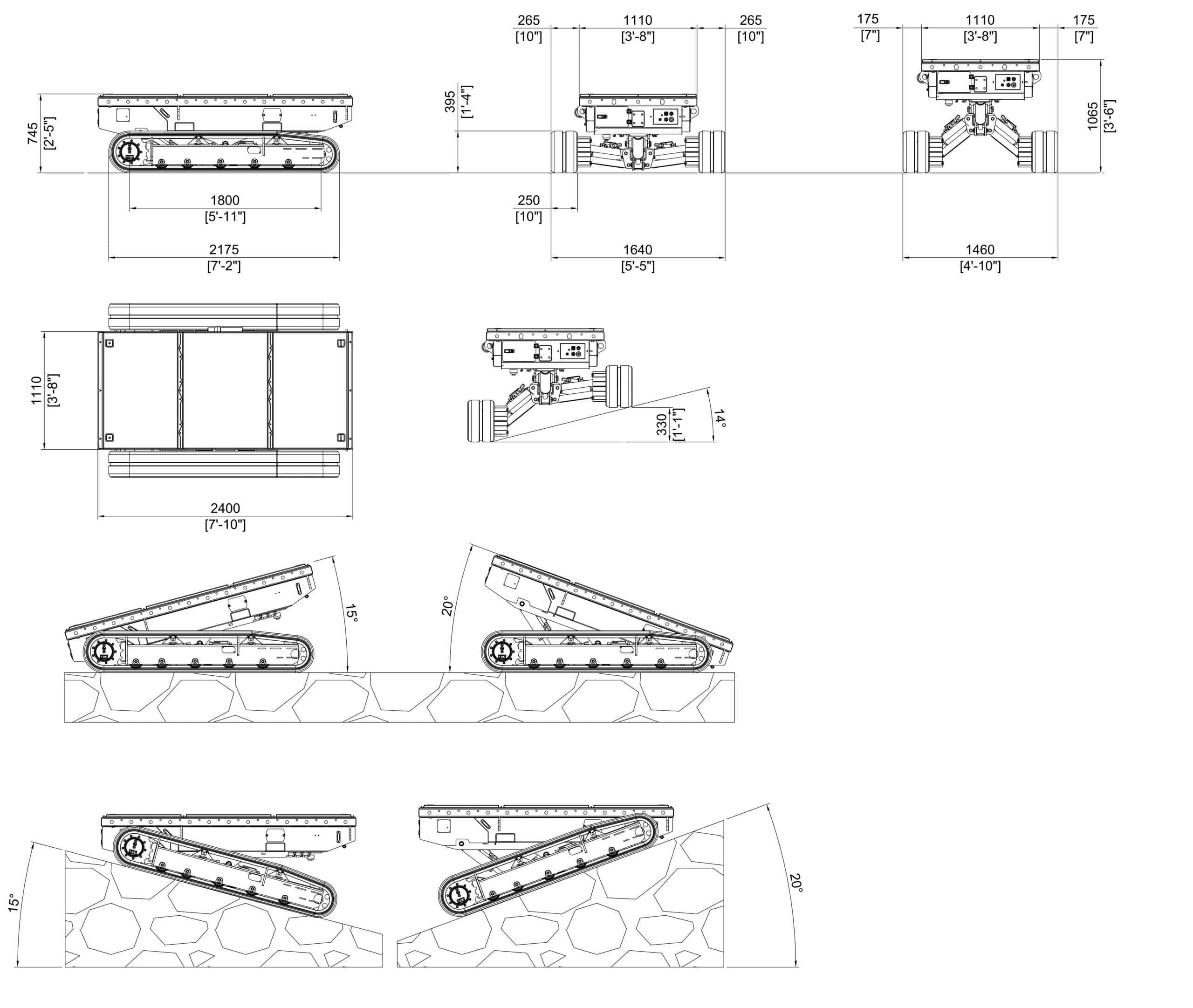

Max Capacity 3000 kg
Min Width 1.46 m
Max Width 1.64 m
Min height 0.74 m
Length 2.40 m
Dynamic levelling Yes
Longitudinal levelling Front 20°
Longitudinal levelling Rear 15°
Lateral levelling +/- 14°
Hydraulic commands Proportionals
Direction-Control System Yes
Easy-Drive System Yes
Control of inclination Automatic
Gradeability 25°
Side slope 25°
Max speed 4.2 km/h
Power of electric motors 2 x 5.3 kW
Voltage 48 V
Battery Charger N°2 65A-48V (110/220V)
Ingress Protection IP IP67
Controller Remote radio control
LTH Battery pack 210Ah – 48V
LTH Recharging time 3,5h – 65 A
LTH Total weight 1670 kg
ELC Battery pack Lead Crystal n°8 180Ah 48V
ELC Recharging time 3,5h – 65 A
ELC Total weight 1855 kg
